Overview

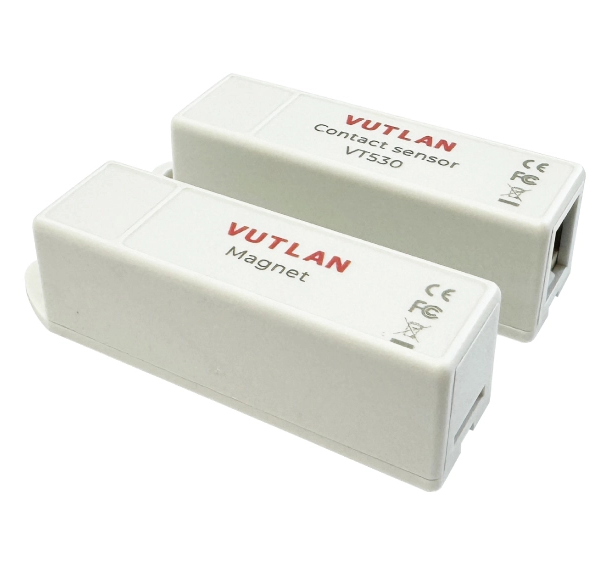

Access sensor for doors and walls.

The VT530 magnetic sensor is a plug-and-play analog door sensor for Vutlan monitoring systems. It connects to any analog port of the Vutlan monitoring unit or VT408 expansion unit.The maximum operating range from the connected port is 100 meters.

Technical Specifications

Specifications

Connection InterfaceRJ-11 / RJ-12

Max Distance150 m

Measured ParameterContact closed/open

Measurement RangeN/A (Magnetic)

Operating Humidity0 to 95%

Operating Temp-10°C to +80°C

Power / Voltage60 mW

Special FeatureIncludes mounting bracket

Type / CategoryAccess Sensor

Physical

Weight0.14 kg

Width9 mm

Depth15 mm

Height3.7 mm
